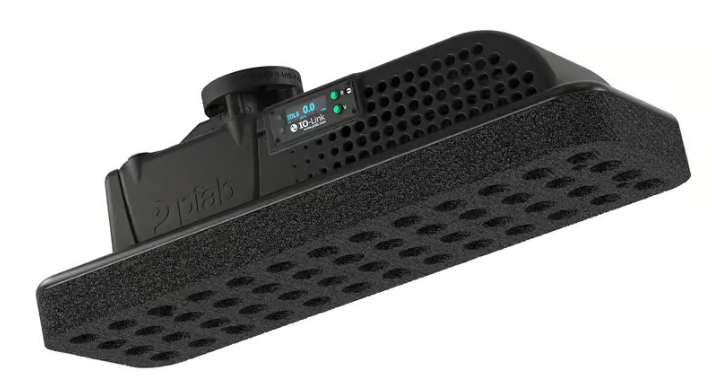

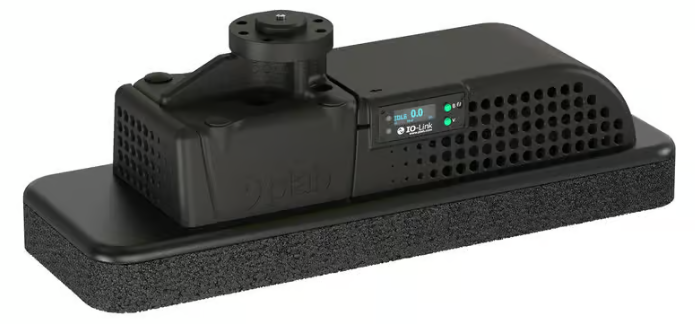

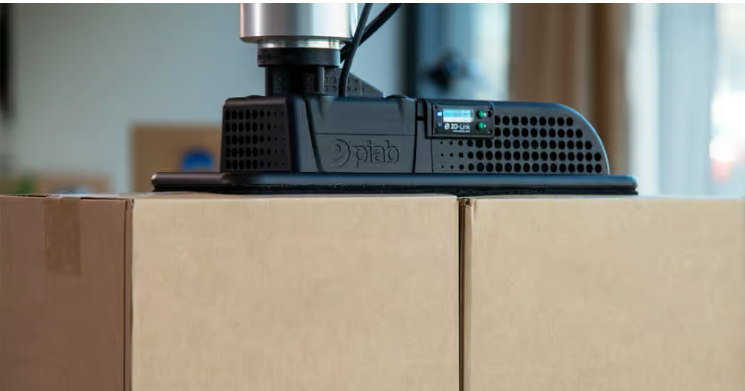

CPT is a compact, all-in-one tool with extended reach for cobot-assisted palletizing. Its multi-zone gripping surface allows picking up multiple boxes in a single move. The low weight means less stress on the robot, increasing its lifetime.
By combining the capabilities of many EOATs into a single unit, the use of a CPT not only significantly reduces tooling costs, but also saves valuable engineering time for other important projects.

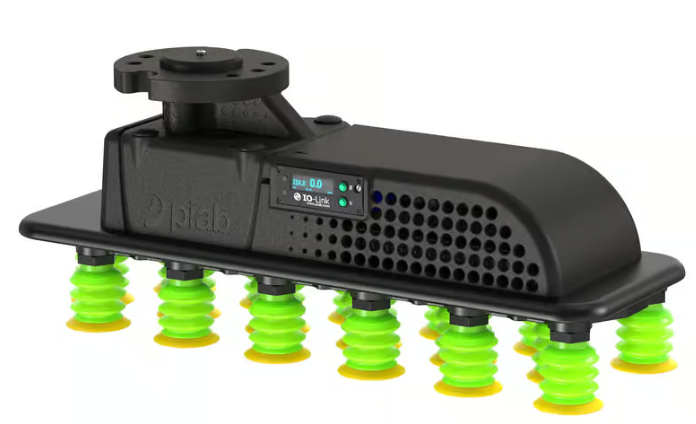

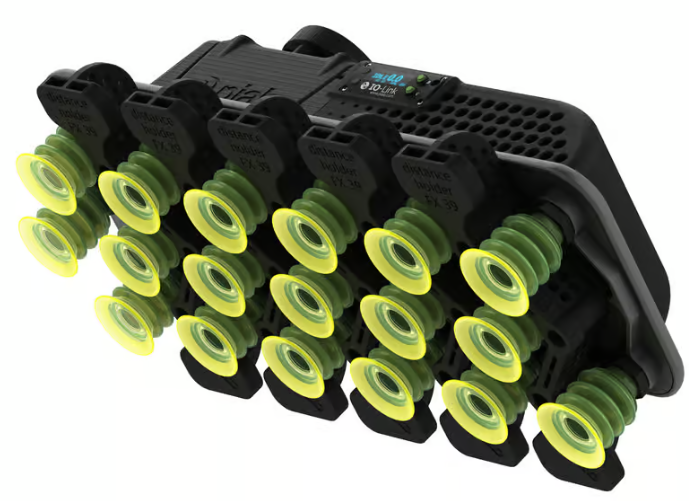

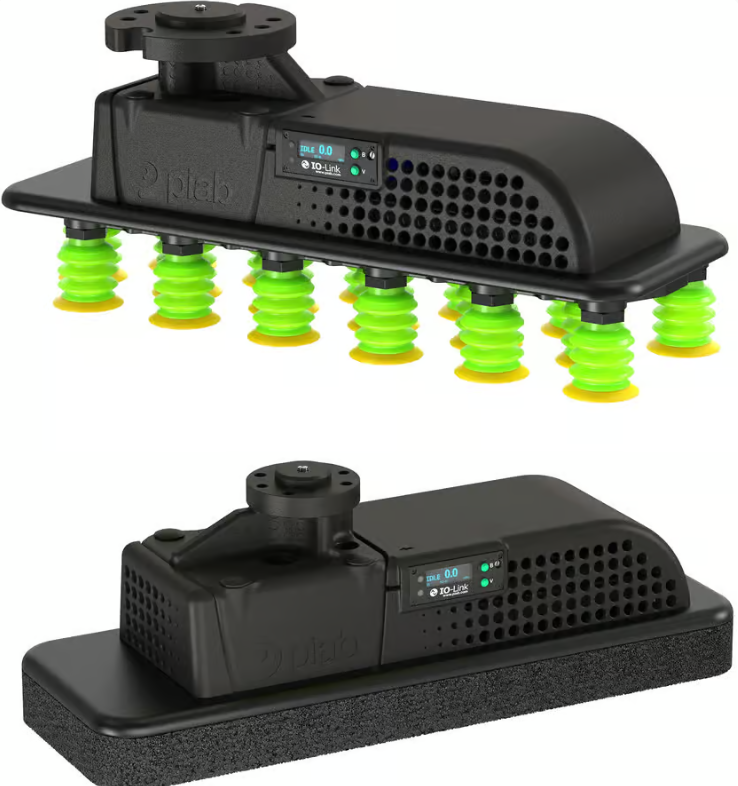

For different configurations, e.g. when changing products, it is only necessary to replace the lower suction plate from foam to suction cups or vice versa.
Integrated functions:
bus interface
vacuum generator
valves
mechanical suction element (foam or suction cups)
Specification:
Max. payload
15 kg
Weight
1.85 kg
communication
IO-Link, URCap
connections
M8 8-pin for I/O, Ø 8 mm for air
operating temperature
+5°C to 50°C
power supply
24V DC, 425 mA
This article is available in various configurations. The price indicated refers to an example configuration. Please contact us before ordering so that together we can find the optimal configuration for your requirements. All information about the product and the technical data is provided without guarantee.
Made to order item, delivery time approx. 2-4 weeks
